Vertical Shaft, Multistage Centrifugal Pumps (CMV-H)

Suction Flange
:
DN 32 .. DN 150
Q (Flow)
:
1000 m3/h (max)
H (Head)
:
450 m (max.)
Motor (Rotation Per Minute)
:
1450 d/dk. - 2900 d/dk.
Direction of Rotation (Motor)
:
Clockwise (Right)
t (Operating Temperature) (1)
:
-10 °C (min.) / +120 °C (max.)
Pd (Body Pressure Pmax) (2)
:
30 bar (50 bar)
(1) » The pump material varies depending on the type of fluid, operating temperature and pressure.
For more information, please refer to our company.
(2) » (Pmax: Suction Pressure + Pump Head in Closed Valve)

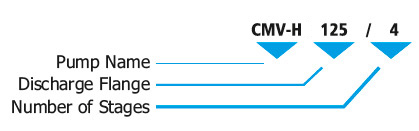

CMV-H Series Pumps;

It is intended for pumping clean or very slightly polluted,viscous liquids without solid particles and fibers.

Technical Specifications

- CMV-H Series pumps are centrifugal pumps with vertical shaft, multi-stage, closed impellers and diffusers.
- They have 8 models from DN 32 up to DN 150.
- Suction flanges conform to TS EN 1092-2 / PN 16, and discharge flanges conform to EN 1092-2 / PN 40 (PN 63).
- In standard production suction and discharge flanges are in the same direction.
- In standard production the shaft sealing is provided with soft seal.
- Optionally unbalanced type mechanical seal is used.
- The direction of rotation is clockwise when viewed from above.
- Pump shaft: it is supported in special journal bearings at the suction body, and in heavy-duty ball bearings at the discharge side which are lubricated with grease.

Pump Description

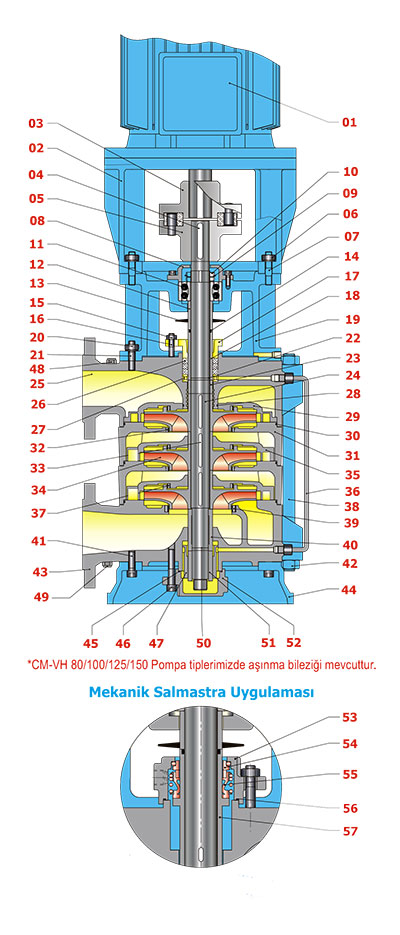

Section Drawing



1 Electric Motor
2 Motor Carrier
3 Coupling ? Motor Side
4 Coupling Key
5 Coupling - Pump Side
6 Motor Carrier Connection Nut
7 Motor Carrier Connection Stud
8 Bearing Cover
9 Safety Washer
10 Safety Nut
11 Bearing
12 Bearing Trust Washer
13 Water Splash Disc
14 O-Rings
15 Hexagonal Nut
16 Stud (Glen)
17 Glen
18 Soft Seal Bushing (Discharge Body)
19 Bearing Races
20 Hexagonal Nut
21 Stud (Discharge Body)
22 Key
23 Semi lunar Ring
24 Pump Shaft
25 Discharge Body
26 Soft Seal
27 Watering Ring
28 O-Rings
29 Last Stage Diffuser
30 O-Rings
31 Stage Body
32 Wear Ring (Stage Body)
33 Key (Impeller)
34 Impeller
35 Diffuser
36 Journal Bearing Supply Pipe
37 Wear Ring (Stage Body)
38 Body Studs
39 Wear Ring (Suction Body)
40 Spacer Bushing (Discharge Body)
41 Allene Bolt
42 Hexagonal Nut
43 Suction Body
44 Lower Deck
45 O-Ring
46 Allene Bolt
47 Journal Bearings
48 Safety Washer
49 Key
50 Safety Nut
51 Shaft Bushing
52 Journal Bearing Cover
53 Mechanical Seal Cover
54 Mechanical Seal (Stationary Part)
55 Mechanical Seal (Rotary Part)
56 O-Ring
57 Mechanical Seal Bushi
